Remote Monitoring

Remote Monitoring

Diver-Link
DN4xx-Diver-Link-800-300x300 (1).png

Diver-Link

Description

The Diver-Link is a durable and easy to install telemetry unit for remote monitoring of ground and surface water levels. The Diver-Link features a compact design with the latest 4G/LTE wireless technology and can be used in a variety of bore hole locations such as flush mount and stick-up wells.

The Diver-Link is part of a complete telemetry solution. A remote monitoring system that integrates field instrumentation with wireless communication and data management to effectively manage (ground)water resources. The Diver-Link is suitable for continuous long and short-term monitoring projects.

The Diver-Link transmits data from a single Diver datalogger, connected by a DXT Cable, over a cellular or mobile network. Up to 3 Divers can be connected to the Diver-Link Triple. Both versions of the Diver-Link are available with an internal or external antenna. An external antenna provides better signal strength and coverage, especially in areas with poor reception or in case the Diver-Link is placed inside a metal well casing.

Configuration and management of the Diver-Link is done through the Diver-HUB web portal, a web portal for real-time management of site data, monitoring equipment and water levels.
Deployment of the Diver-Link is simple; insert the battery and connect the unit to a Diver. In the field, the Diver-Link can be operated using the magnetic function keys to activate the unit. Future firmware updates are automatically executed ‘over-the-air’, so there is no need for additional site visits.

Features & Benefits

Features

  • Connect up to 3 Divers

  • Data logging and transmission

  • Compact enclosure

  • Lithium battery operated

  • Internal or external antenna

  • Barometric datalogger

  • IP67 rating and magnet operated, Bluetooth Smart enabled

  • Over-the-air firmware update

  • Compatible with all Diver dataloggers and cables

Benefits

  • Saves space in the well enclosure, a cost-effective solution

  • Always up-to-date without the need for data collection ‘in the field’

  • Diver-Link fits almost any well

  • 5+ years of battery life

  • Automatic barometric compensation: no data post-processing

  • Avoid water or dust ingress

  • Keep the Diver-Link up-to-date without site visits

  • Easily upgrade an existing Diver monitoring network to remote monitoring


Diver-SDI

Description

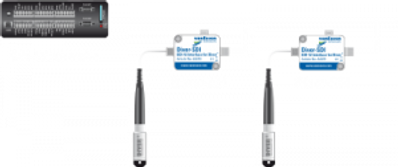

The Diver-SDI integrates Divers with SDI-12 remote monitoring systems. A typical SDI-12 system illustrated in the figure below. On one end the Diver-SDI is connected to the SDI-12 system through the 3-wire SDI-12 bus, which also include the power supply of 12 Volt. On the other end a Diver cable (AS2xxx) is attached to connect the Diver-SDI to a Diver. Diver cables up to a length of 500 meters (1,640 ft) can be used with the Diver-SDI.

Features & Benefits

Features

  • The Diver-SDI has a built-in pressure and temperature sensor for measuring real-time air temperature and atmospheric pressure.

  • Automatic barometric compensation of the Diver pressure readings.

  • Dynamic density compensation for accurate water levels in saline conditions when used in combination with the CTD-Diver.

  • External power supply through SDI-12 system.

Benefits

  • No need for additional sensors to measure air temperature and atmospheric pressure.

  • No need for post-processing the pressure data.

  • Accurate water levels when water density varies due to salt content.

  • No internal battery is required. The compact Diver-SDI can be mounted inside the well casing for long-term, uninterrupted use.

Diver-SDI

Diver-MOD

Description

The Diver-MOD is the Modbus interface for Divers and is used to connect Divers to an RS485 network using the Modbus/RTU protocol. The Diver-MOD features a barometric sensor, which can be used to convert the Diver pressure in to a water level.

A typical Modbus configuration is illustrated in the figure below. In the schematic, two Diver-MODs are connected to a PC/PLC. This connection includes both data communication and power. The maximum Modbus cable length depends on the baud rate, the cable, the network configuration (2-wire or 4-wire), etc. A maximum length of 1000 meters can be achieved using the right components.

Features & Benefits

Features

  • The Diver-MOD has a built-in pressure and temperature sensor for measuring air temperature and atmospheric pressure readings.

  • Read Diver memory.

  • Program the Diver sample interval.

  • Start and stop Diver.

  • Power is supplied by the Modbus network.

Benefits

  • No need for additional sensors to measure air temperature and atmospheric pressure.

  • No need for post-processing the pressure data.

  • No internal battery is required.

Diver-MOD
